BHM388Y Automatic Edge Banding Machine Suitable for Continuous Edge Banding of MDF PVC and Wood Panels in Industrial Settings

Brand Name : BH

Model Number : 388Y

Certification : CE

Place of Origin : Qingdao China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 3000Sets/Year

Delivery Time : 7-25Days

Packaging Details : 5000 x 750 x 1500 mm

Sheet preheating power : 0.3 kW

Glue box transmission power : 0.55 kW

Conveyor belt motor power : 2.2 kW

motor power : 0.35 kW x 2 (18,000 rpm)

Fine trimming motor power : 0.75 kW x 2 (18,000 rpm, 300 Hz)

Contact Now

BHM388Y MDF PVC Wood Automatic Edge Banding Machine

The BHM388Y represents the pinnacle of industrial edge banding technology, designed for high-volume manufacturing environments. Engineered by Qingdao Baihang Machinery, this machine delivers a comprehensive, fully automated solution for edge sealing on MDF, solid wood, PVC, and acrylic panels.

With a robust 13.5kW power system and a 5-meter processing line, the BHM388Y is built to handle the rigorous demands of professional furniture production, ensuring a flawless finish on every workpiece.

Specification

No	Item	Data
1	Dimensions	5000 x 750 x 1500 mm
2	Weight	1500 kg
3	Operating Voltage	380V/50Hz
4	Total Power	13.5kW
5	Sheet Thickness	10~60mm
6	Conveyor Speed	18~24m/min
7	Minimum Width	50mm
8	Minimum Length	70mm
9	Operating Air Pressure	0.7MPa
10	Edge Band Thickness	0.3~3mm
11	Glue box heating power	1.5 kW
12	Sheet preheating power	0.3 kW
13	Glue box transmission power	0.55 kW
14	Conveyor belt motor power	2.2 kW
15	Trimming motor power	0.55 kW x 2 (12,000 rpm, 200 Hz)
16	Fine trimming motor power	0.75 kW x 2 (18,000 rpm, 300 Hz)
17	Tracking and profiling motor power	0.35 kW x 2 (18,000 rpm)
18	Polishing motor power	0.18 kW x 2

Functions and Performance Overview

The BHM388Y features an integrated workflow that ensures superior adhesion and a mirror-like finish:

1. Dual Pre-Milling System: Equipped with two high-speed milling cutters to remove burrs, grain marks, or non-perpendicular cuts. This preparation ensures a perfectly flat substrate edge, which is critical for achieving a premium seal on raw materials.
2. Spiral Glue Application: The heated glue pot utilizes a spiral structure to distribute hot melt adhesive evenly across the entire edge. This mechanism guarantees strong, durable bonding that resists peeling and delamination.
3. Precision Trimming & Scraping:
- Rough Trimming: Reduces the load on subsequent tools and prevents chipping, especially on brittle veneer materials.
- Fine Trimming: Features a high-speed oblique cutting motor and an alloy disc for a smooth, precise edge profile.
- Flat Scraping: A dedicated scraping station gently removes any ripple marks caused by the cutting process, providing a secondary refinement for a glass-smooth surface.
4. End Cutting: A stable single-guide rail cutter trims the panel ends flush, ensuring clean and precise corners.
5. High-Speed Buffing: The process concludes with a polishing station that enhances the luster and tactile quality of the finished product.

Intelligent Control & Stability

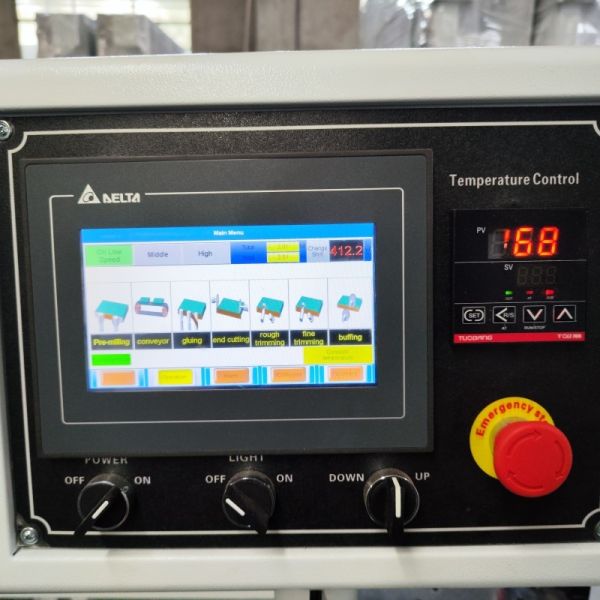

The BHM388Y integrates a standard PLC microcomputer control system based on time-control principles. This intelligent setup, combined with a high-sensitivity encoder, manages all machine actions. The result is rapid response times, low failure rates, and exceptional operational stability even during extended production runs.

Why Choose the BHM388Y?

- Versatile Material Handling: Capable of processing a wide range of edge banding materials, including wood veneer, PVC, and ABS tapes from 0.3mm to 3mm in thickness.
- High Efficiency: With a conveyor speed of up to 24 meters per minute, it significantly boosts production throughput.
- Professional Finish: The combination of pre-milling, dual scraping, and fine polishing ensures a finish quality suitable for premium cabinetry and high-end furniture.
This machine is the ideal investment for manufacturers seeking to automate their edge sealing processes while maintaining the highest standards of quality and efficiency.
